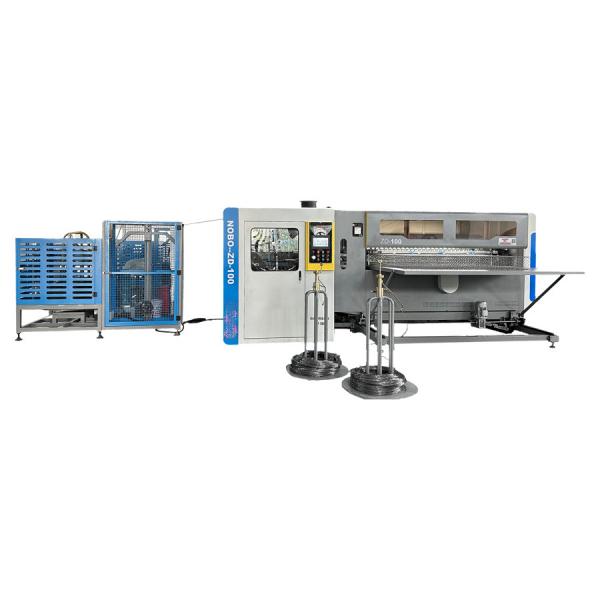

Mattress Spring Bed Core Making Machine 90-100 Springs / Min Datas Of The Spring Can Be Adjusted By The Computer
Product Description:
Mattress Spring Bed Core Making Machine 90-100 Springs/min 1.9-2.4mm Wire Diameter
Our Mattress Assembly Line is an advanced mattress production system designed to produce high-quality, highly-durable mattresses with efficiency and accuracy. This mattress production line is based on EtherCAT Servo Control, and is equipped with a Bonell spring type, spring wire diameter of 1.9-2.4mm, and 4-7 turns of convolutions. Our mattress production line is designed to provide maximum productivity and minimum downtime, while delivering consistent quality results. We guarantee a 1-year warranty on all our mattress production line components, and we are confident that you will be satisfied with the performance of our mattress production system.
Features:
- Product Name: Mattress Production Line
- Max width: 2m
- Spring type: Bonell
- Working principle: EtherCAT Servo Control
- Spring Capacity: 90－100Springs/min
- Capacity: 60-90 Sheets/8 Hours(1800MM*2000mm)
- Spring Datas:All the datas of the spring can be adjusted bythe touch screen of the computer
- Mattress Assembly Line
Technical Parameters:
| Parameter | Value |
| Machine Occupied Area | 9000*4500*2100 |
| Spring type | Bonell |
| Spring wire diameter | 1.9-2.4mm |
| Warranty | 1 Year |
| Assembly wire diameter | 1.3-1.6mm |
| Spring end ring diameter | 65mm-90mm |
| Spring Capacity | 90－100Springs/min |
| Spring Height | 80-200mm(other Size Can Be Customized) |
| Weight | Approx: 5500KG |
| Spring Datas | All the datas of the spring can be adjusted bythe touch screen of the computer |
mattress spring making machine,spring manufacturing machine,spring coiling machine price,bonnell spring coiling machine,mattress spring bed
core making machine,spring bed core making machine
Applications:
Mattress Production Line: NOBO ZD-100S
This Mattress Production Line from NOBO, model number ZD-100S, is designed to provide mattress manufacturers with a reliable and efficient way to produce mattress springs and bed core components. It is produced in Foshan, China, and has been certified by CE. The minimum order quantity is 1 set, and the price ranges from USD 65000.0-70000.0. It is packed in standard packing, with a delivery time of 25 days. Payment terms can be either T/T or L/C, and the supply ability is 2 Set/Sets per month. Total power required is Approx.35 KVA, and the assembly wire diameter is 1.3-1.6mm. It requires a power requirement of 380V, 50-60HZ, 3 Phase (or 415V-480V, 220V). The machine occupies an area of 9000*4500*2100, and is controlled by EtherCAT Servo Control.
Customization:
Mattress Production Line
Brand Name: NOBO
Model Number: ZD-100S
Place of Origin: Foshan,china
Certification: CE
Minimum Order Quantity: 1 set
Price: USD $65000.0-70000.0 / Set
Packaging Details: Standard packing
Delivery Time: 25
Payment Terms: T/T, L/C
Supply Ability: 2 Set/Sets per Month
Machine Occupied Area: 9000*4500*2100
Assembly wire diameter: 1.3-1.6mm
Working principle: EtherCAT Servo Control
Max width: 2m
Power Requirement: 380V, 50-60HZ, 3 Phase(Option:415V-480V, 220V)
Mattress Assembly Line, Mattress Manufacturing Line, Mattress Production line
Our Mattress Production Line is designed to provide you with optimal mattress assembly services. It is especially suitable for the production of mattress, and is an ideal choice for mattress manufacturers. Our product features a brand name of NOBO, a model number of ZD-100S, and a place of origin of Foshan, China. It also has a CE certification, a minimum order quantity of 1 set, a price range of USD $65000.0-70000.0/Set, a standard packing, a delivery time of 25 days, a payment terms of T/T, L/C, a supply ability of 2 Set/Sets per Month, a machine occupied area of 9000*4500*2100, an assembly wire diameter of 1.3-1.6mm, a working principle of EtherCAT Servo Control, a max width of 2m, and a power requirement of 380V, 50-60HZ, 3 Phase (Option:415V-480V, 220V).
Our mattress production line is your perfect choice for mattress assembly services. We guarantee that it is of the highest quality and is able to meet your highest expectations.
Support and Services:
We provide technical support and services for the Mattress Production Line. Our services include:
- Providing technical assistance for setup and operation of the machine.
- Providing maintenance and repair services for the machine.
- Providing technical training for operators.
- Providing spare parts and consumables for the machine.
- Providing ongoing software updates.
Packing and Shipping:
The Mattress Production Line is packaged and shipped in the following manner:
- The box is securely taped shut.
- Shipping labels are attached to the box.
- The pallet is loaded onto a truck for delivery.
FAQ:
Q&A about NOBO ZD-100S Mattress Production Line
Q1: What is the brand of NOBO ZD-100S Mattress Production Line?
A1: The brand of NOBO ZD-100S Mattress Production Line is NOBO.
Q2: What is the Model Number of NOBO ZD-100S Mattress Production Line?
A2: The Model Number of NOBO ZD-100S Mattress Production Line is ZD-100S.
Q3: Where is the Place of Origin of NOBO ZD-100S Mattress Production Line?
A3: The Place of Origin of NOBO ZD-100S Mattress Production Line is Foshan,China.
Q4: What is the Certification of NOBO ZD-100S Mattress Production Line?
A4: The Certification of NOBO ZD-100S Mattress Production Line is CE.
Q5: What is the Minimum Order Quantity of NOBO ZD-100S Mattress Production Line?
A5: The Minimum Order Quantity of NOBO ZD-100S Mattress Production Line is 1 set.
